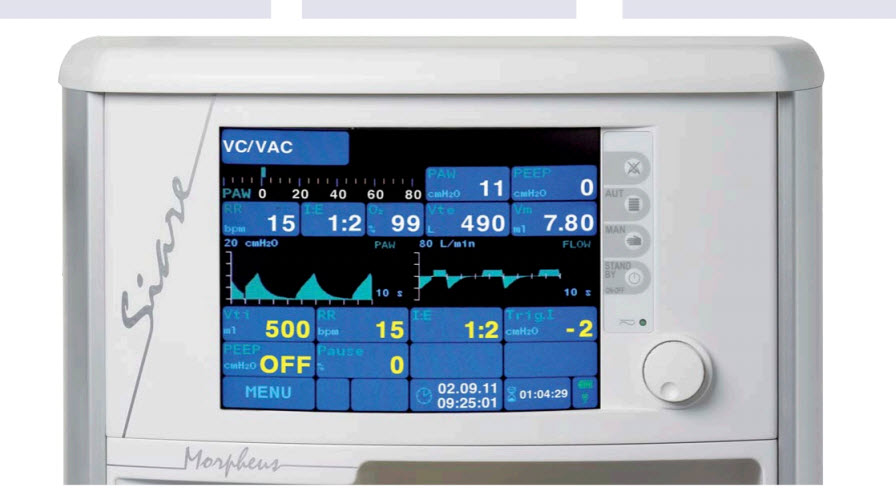

The lung ventilator incorporates a 12" TFT high resolution colour display with membrane keyboard and encoder.
Ventilation modalities:
APCV-PCV; APCV-TV; PSV; APNEA BACK-UP; VC-VAC; VC-VAC BABY; SIMV+PS (volumetric); SPONT; MANUAL.
Measured parameters:
PAW; PEEP; Vte; ExpMV; Rate; I:E; FiO2
Pmax; Pmean; Pause; Vti; FLOWi; FLOWe; Tinsp; Tesp; Tpause; Cs; Ri
Displayed ventilation curves:
- Paw
- Flow
- Volume
- Loop (Volume/Paw ; Volume/Flow)

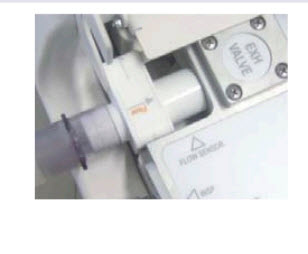

Reading is made through an exclusive SIARE stérilizable flow sensor operating by magnetic induction and positioned inside the expiratory valve of the breathing system. This technological development allows to eliminate all management costs raising from continuous replacement off low sensors positioned directly on the patient's mouth and makes the device unique in its gender.
Adjustable parameters:
- O2 built-in Mixer device from 21% to 99%
- I:E Adjustable Ratio: 1:1 - 1:1.5 - 1:2 - 1:3 - 2:1 - 3:1
- Inspiratory Flow
- PEEP
- Breathing Rate
- Minute Volume;
- Tidal Volume
- Inspiratory Pressure Limit
- Inspiratory Pause
- Inspiratory Time
- Trigger
